Introduction

My parents have bought a new house in Spain and with that comes the sudden idea to try and make a traditional house in the beautiful east of Spain as smart as possible before returning to school in the UK.

Throughout the years making a house "smart" or in reality digitizing manual aspects of a house has become more easier than ever. To, for example, automate a light switch you need two things.

• A light switch which supports a communication protocol, such as Wi-Fi or something analog like Zigbee or ZWave (I use ZigBee)
• A server which is capable of communicating with such device

That's it! With an operating system such as Home Assistant OS you can immediately get it running to exact how you'd like it (including Apple Homekit and Siri and so on!)

My Air Conditioners

My house came equipped with two traditional remote-powered air conditioners in the living room and my parent’s bedroom. Obviously since I am a nerd and stay in my office all day we got one installed.

This blog post will be scoped around the TCL Air Conditioner regarding a very interesting feature that it contains compared to my other air conditioners...

...and that is the ability that it can connect to my Wi-Fi network and be controlled from its app called "TCL Home" which is a very intiutive app making it easy to add TCL products and control them. Another key feature of TCL Home is its ability to be integrated into Google Assistant and Amazon Alexa (keep this in mind for later)

I was very intruiged to see if this Air Conditioner would work in Home Assistant, but after it was purchased and installed I couldn't find anything promising that it would work directly into Home Assistant or with another platform like Tuya.

Let's begin hacking!

I was stuck on this for a few days, as I would imagine any regular customer/homelabber would be when something like this is not supported. This is a mobile app and therefore it is more complicated than usual to inspect the incomming and outgoing requests to see what it was doing...

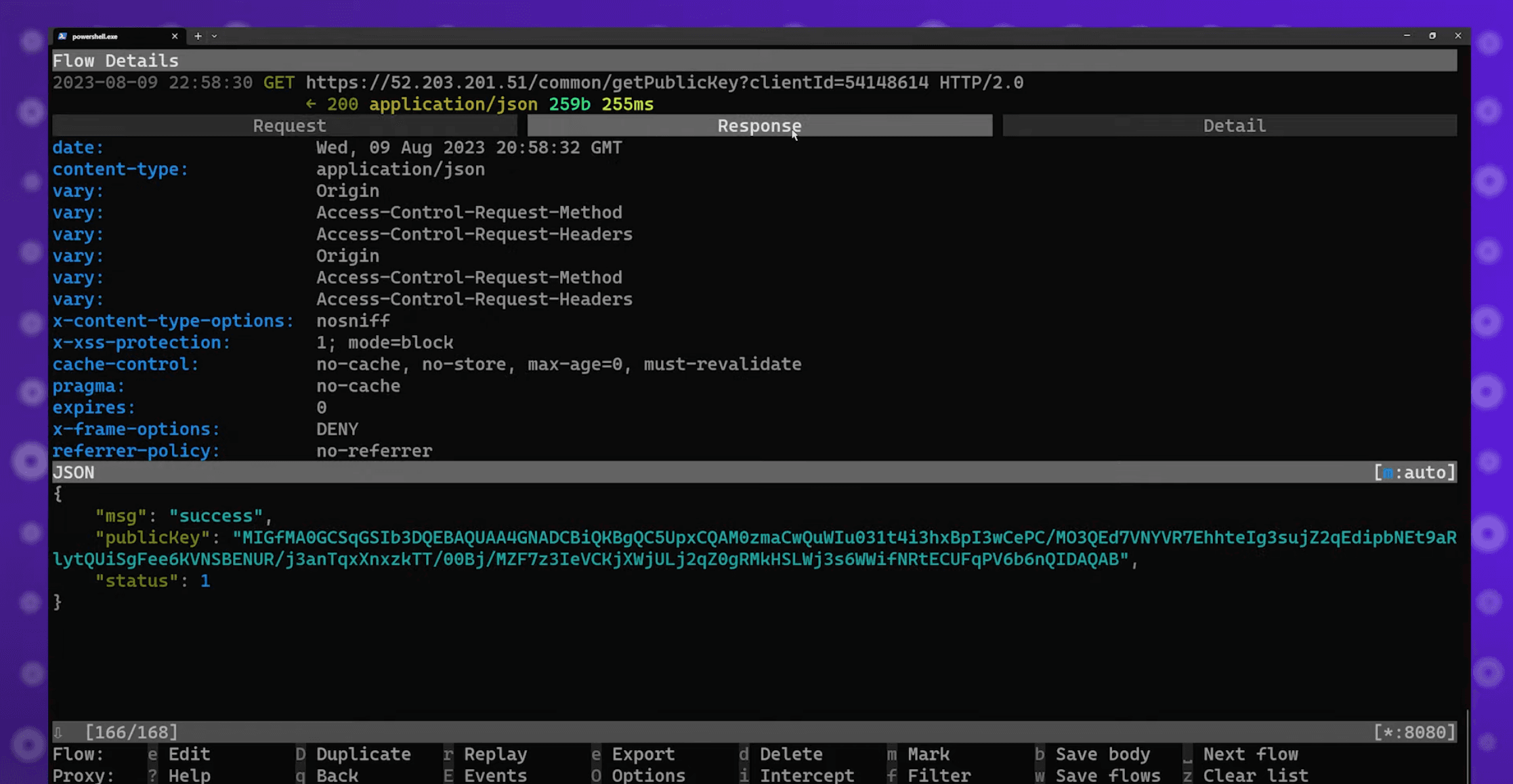

But not for me! It came to me that I could download the app on an emulator and run it through a Man In The Middle proxy running on my computer. It intercepts every single incoming request and then monitors and displays it to me and then I can look through each individual one of them. Basically it acts as Chrome Dev Tools which I am pretty sure every web developer is familiar with.

It was so interesting to see how other applications function and what requests are made, how they’re structured, what information comes back. As a web developer, this is heaven to me, and even though I am used to browser dev tools, it just feels different for applications cause I think everyone has wanted to make a mobile app at some point.

How does the TCL Home App work?

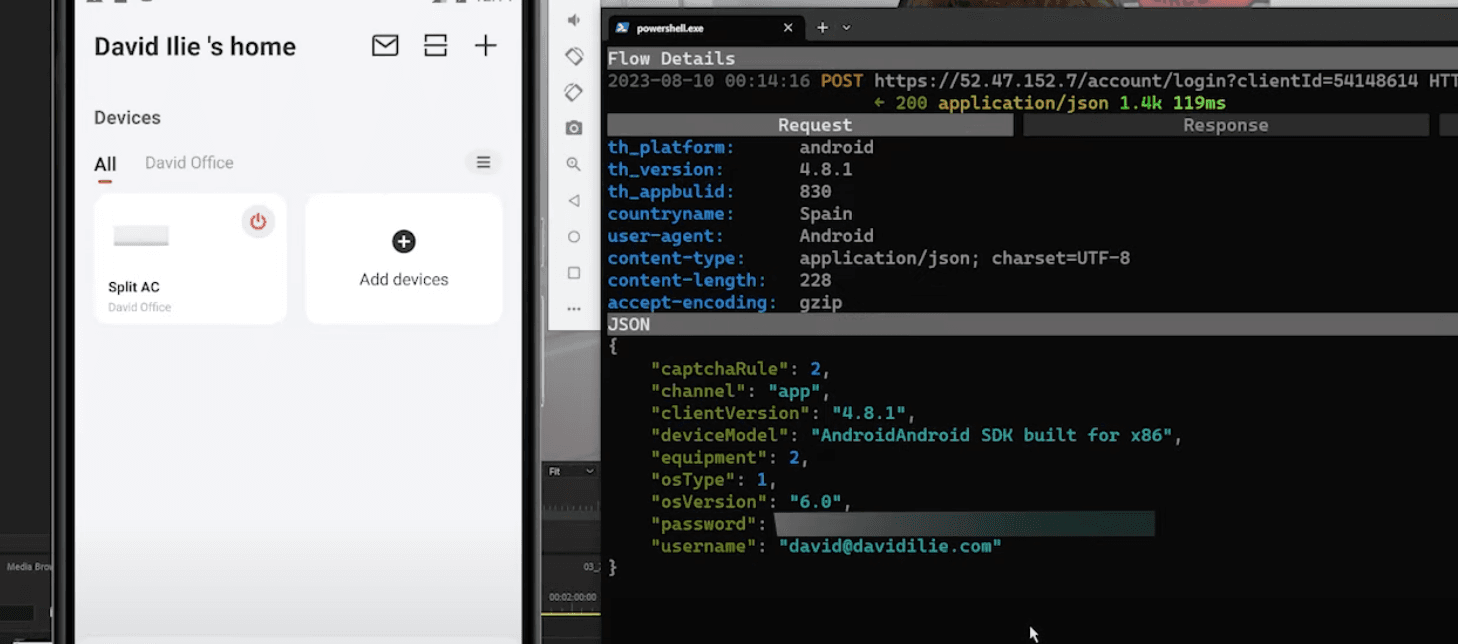

It first authenticates with a username and password which is how you have the main authorization token to use throughout the app.

To start accessing other endpoints, you authenticate to another refresh token endpoint which aside from a bunch of other tokens you get something called a “Saas Token”. Which is what we’re going to use for later.

{
   "code": 0,
   "message": "SUCCESS",
   "data": {
      "saasToken": "eyJ0eXAiOiJKV1QiLCJhbGciOiJFUzI1NiJ9.##.GjSHkzJdNZ0876J7ZSO7JOXOFOUz9Nf3nXqhFh_GvCgItZD27407Q6-##",
      "cognitoId": "##",
      "cognitoToken": "##",
      "mqttEndpoint": "##"
   }
}

With the token achieved I thought it was going to be extremely easy. I would just have to append the “Saas Token” to the request and that’s it, everything else I just copy it from what the Android client did.

const r = await fetch("https://prod-eu.aws.tcljd.com/v3/user/get_things", {
   method: "POST",
   headers: {
      platform: "android",
      appversion: "5.4.1",
      thomeversion: "4.8.1",
      accesstoken: saasToken,
      countrycode: country,
      "accept-language": "en",
      timestamp: "asudnuaisbdiausbdiasd",
      nonce: "aisubdaisdbiausdbiabsdiuasd",
      sign: "aisubdaubsdiuasbdiasbdiuasd",
      "user-agent": "Android",
      "content-type": "application/json; charset=UTF-8",
      "accept-encoding": "gzip, deflate, br",
   },
   body: JSON.stringify({}),
});

From what I could tell one of the request headers is a checksum. Which meant that if I want to get this working I’m going to need to calculate it myself. And me as a basic web developer, I’ve never had to calculate a checksum before so I was stuck on this for hours on end.

Checksum... More like Checkmate!

Til I thought of something I’m not sure that is is completely allowed, but hey. You only live once!

At the end of the day this comes down to free use and I don’t plan making any money out of this post or out of this project.

So what I did is I got the APK file from a standard APK website and then ran a project I found on GitHub called Vineflower:

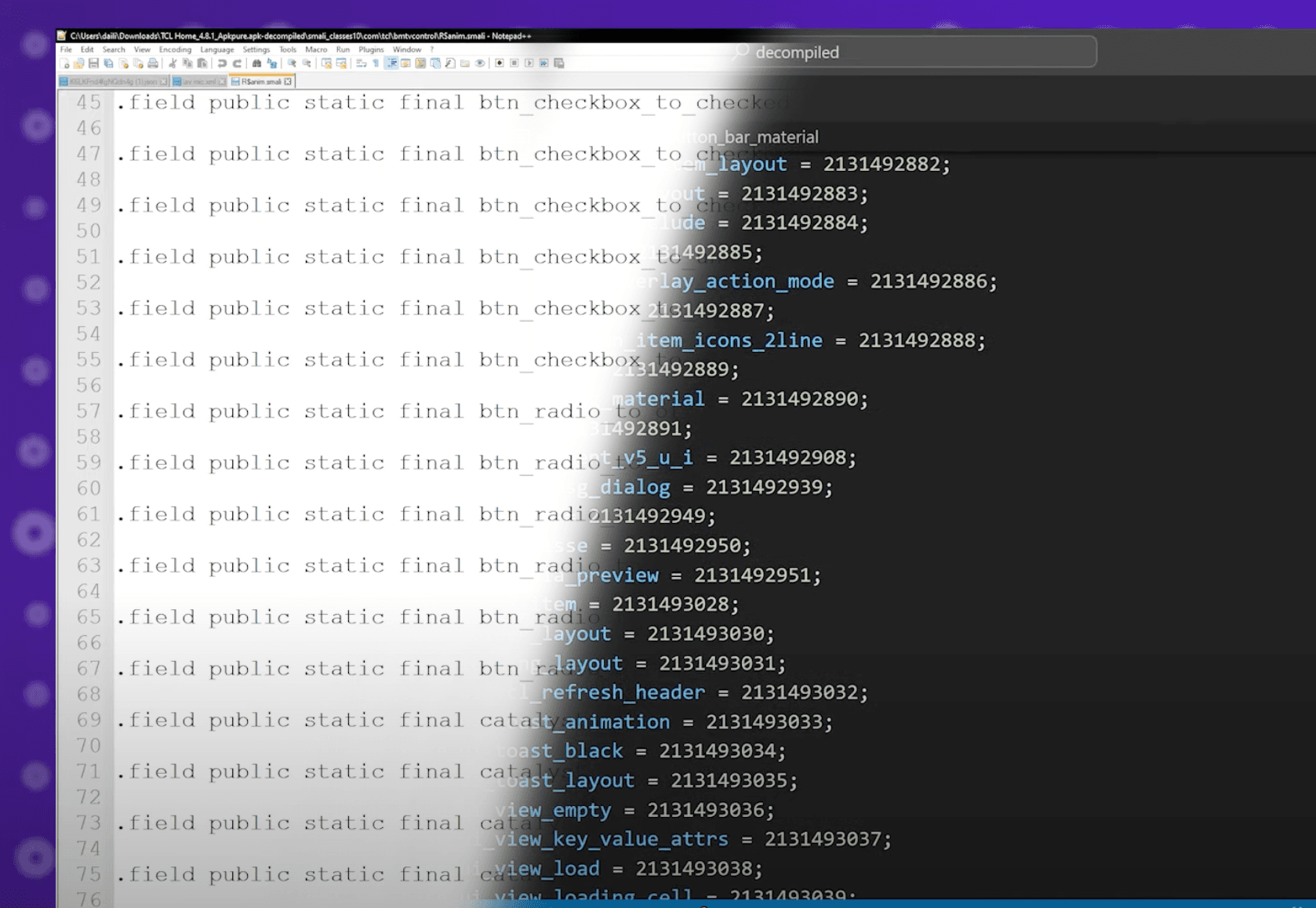

This tried to do as much as it could to convert the Smali code for the Dalvik Virtual Machine (which is usually executed directly on an Android Client) into Java for me to understand.

With the partial decompiled source code present I needed to identify where the request to get the device information is executed from. After using some search tools and looking through the code I managed to find what I was looking for.

However, to my luck, that EXACT function that composed the request was not successfully decompiled from Smali to Java. This is what it looked like:

@NonNull
@Override
public Response intercept(@NonNull Interceptor.Chain param1) throws IOException {
   // $VF: Couldn't be decompiled
   // Please report this to the Vineflower issue tracker, at https://github.com/Vineflower/vineflower/issues with a copy of the class file (if you have the rights to distribute it!)
   //
   // Bytecode:
   // 000: aload 1
   // 001: invokeinterface okhttp3/Interceptor$Chain.request ()Lokhttp3/Request; 1
   // 006: astore 3
   // 007: getstatic com/tcl/bmnetwork/interceptor/IotApiInterceptor.IOT_BASE_URL Ljava/lang/String;
   // 00a: ifnonnull 030
   // 00d: getstatic com/tcl/bmnetwork/interceptor/IotApiInterceptor.urlSetLock Ljava/lang/Object;
   // 010: astore 2
   // and so on...
}

I needed to figure out a way where I can convert this Smali code into Java so I could at least understand the fundamentals of it...

AI, AI and AI

You know who could do something like this? Good old ChatGPT.

Giving it a simple prompt to convert the code into Java worked like an absolute breeze.

And it didn’t stop at the request builder. Sitting in the same class was the piece I actually cared about: the function that generates that cursed checksum and signs every request before it leaves the phone. Smali again, unreadable to me again, pasted into ChatGPT again, and converted without a single complaint.

So now I had two chunks of Java. One that knew how to build the request, and one that knew how to sign it. Two pieces of a phone app that were never meant to leave the phone, sitting right there in my editor.

Hacked successfully!

I spun up a tiny Java command line project, ran the signing code, and copied the hash it printed out. Then I pasted that hash into my TypeScript project, fired the request off to the TCL Home API… and there it was. The live state of my air conditioner, staring back at me from my own little API endpoint.

I genuinely can’t recreate the feeling of seeing that for the first time. Hours of staring at obfuscated bytecode, and suddenly my own code was talking to an air conditioner across the room like it owned it.

But I wasn’t happy with how I got there. Copy-pasting a hash out of a separate Java project every single time isn’t a solution, it’s a hostage situation. So I sat down to convert the Java into TypeScript, line by line, by hand…

…haha, no. Straight back to ChatGPT.

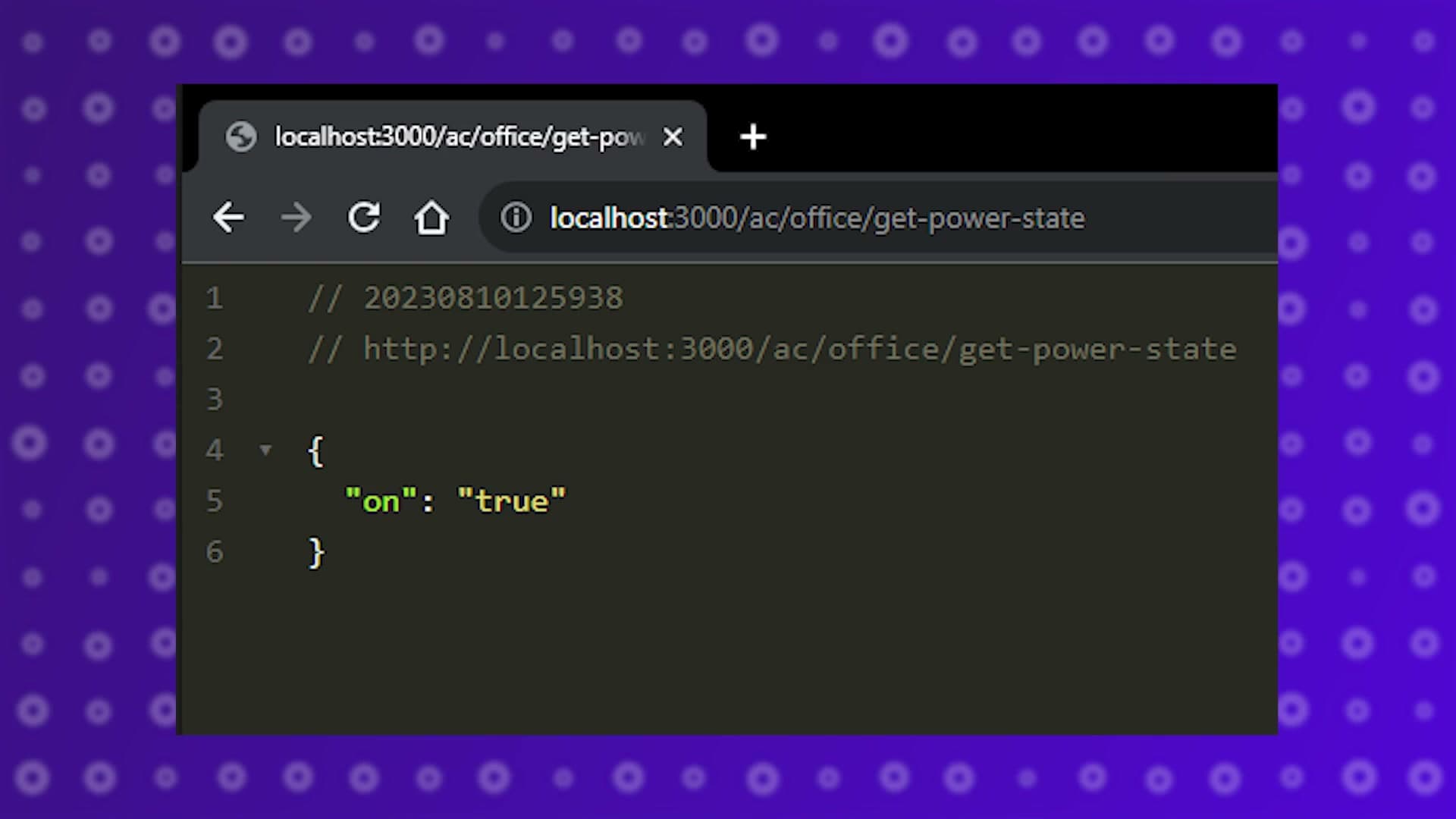

And it worked. No Java, no copy-paste, just TypeScript pulling the live power state of my air conditioner directly from the TCL Home API. The funniest part? After all of that, the “checksum” that had eaten days of my life turned out to be an MD5 hash of the timestamp, a random nonce, and the Saas Token, glued together and spat back out as hex:

export const calculateMD5HashBytes = (input: string): string => {
   const hash = crypto.createHash("md5").update(input).digest();
   const hexChars: string[] = [];
   for (let i = 0; i < hash.length; ++i) {
      const byteValue = hash[i] & 255;
      if (byteValue < 16) hexChars.push("0");
      hexChars.push(byteValue.toString(16));
   }
   return hexChars.join("");
};

// every request gets signed with this
const sign = calculateMD5HashBytes(timestamp + nonce + saasToken);

All that, for one MD5 and a bit of hex padding. I didn’t know whether to laugh or cry.

The last thing I did was wrap all of this in a database. While I was testing I managed to rate limit myself into oblivion, so now I cache the authentication tokens instead of re-authenticating on every request. Grab them once, reuse them, stop poking TCL’s servers every two seconds.

Not all hope is lost!

Reading the state is one thing. I wanted to actually control the thing, and that’s where I hit a wall (a wall I’ll properly climb in a future post).

To send commands, the app uses a few more values from an earlier request to authenticate itself to AWS, and from there to an MQTT server. The problem is that I can’t snoop on the MQTT traffic the way I did with everything else, because it detects the proxy and refuses to play along. That part is a bit out of my league for now.

So I went looking for a shortcut, and I found one in the last place a developer ever looks: the manual. TCL Home officially supports Google Assistant and Amazon Alexa. For my dad, who’s on Android, that’s great, he can just tell Google to turn the AC on. For me, an Apple person, that’s about as useful as the app I was trying to escape from in the first place.

Except here’s the loophole. Home Assistant can talk to Google Assistant. And Google Assistant, as we just established, can talk to TCL Home. So I went through Google as a middleman, wired it up through the Home Assistant API, and deployed the whole thing to my shiny new Kubernetes cluster.

It’s integrated!

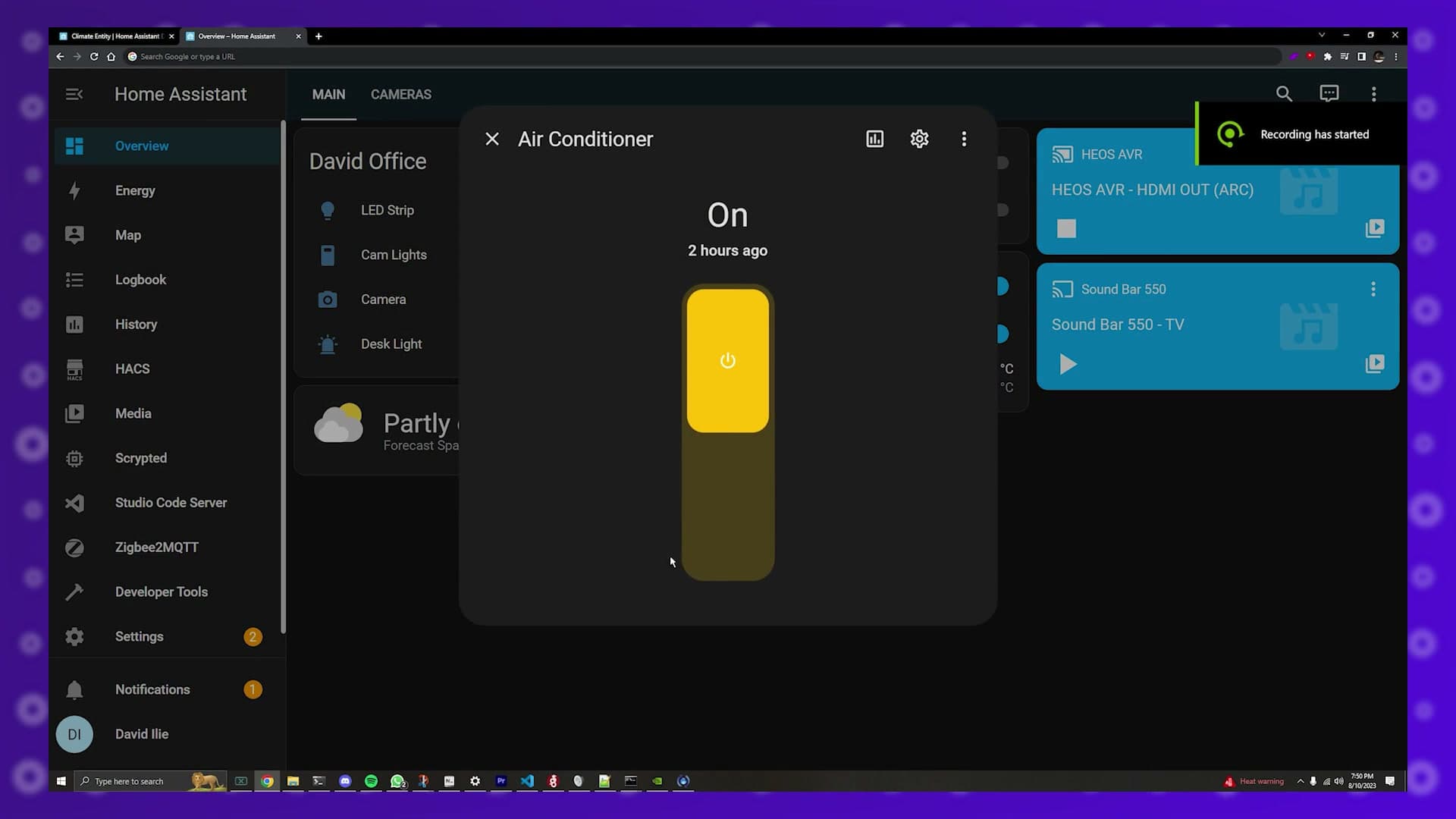

The payoff is a plain on/off switch in Home Assistant for my office air conditioner. I can flip it from the dashboard, from Apple Home, from Siri, and from Google Assistant. It’s held together with more duct tape than I’d like to admit, but it’s in.

Time for the next AC

That was the hardest one from a logic and research point of view. Next up were the two standalone air conditioners in the living room and my parents’ bedroom.

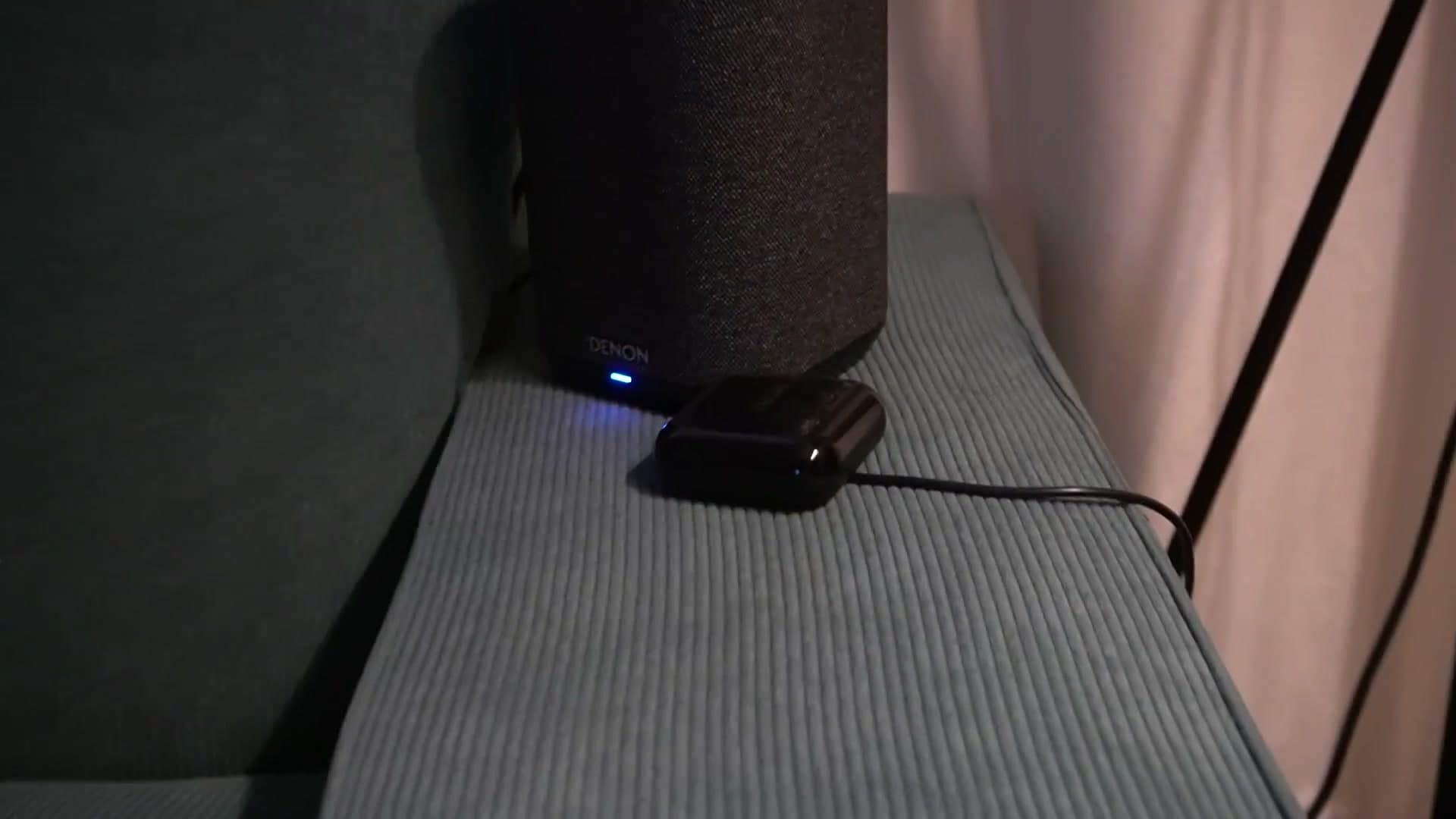

As a test, alongside a few other gadgets I bought a cheap “Tuya Smart Home IR” thing off Aliexpress. It’s basically an infrared blaster that pretends to be the remote, and it can control other IR stuff like the TV at the same time.

Now let me tell you about Tuya

In plain English: manufacturers don’t have to build and run their own servers for their smart products. They lean on Tuya’s cloud instead, so every no-name seller on Aliexpress can ship something that just works without worrying about supporting it for years. The customer gets to worry about that part.

On paper it’s a great deal, and honestly it mostly is, which is exactly why so many cheap Tuya products fly off Aliexpress. In practice it’s a bit of a yes and no.

Because there are so many Tuya products, not all of them behave the same way once you step off the happy path, and integrating one into Home Assistant is very much off the happy path. Tuya do publish their own official integrations for Home Assistant, Homebridge, you name it, but the last time any of them got real attention was around 2021. When I added my air conditioner through the official Tuya integration, Home Assistant just told me it wasn’t supported.

So why did I buy it? Partly for a fairly interesting project, and partly because I wanted to see if I could make it work myself in as little time as possible. And it turns out that if you can read Tuya’s API documentation, you can figure out exactly which routes you need. In my case there were only two that mattered: one to get the status of the air conditioner, and one to send it commands.

# the connector handles all the request signing for me
openapi = TuyaOpenAPI("https://openapi.tuyaeu.com", access_id, access_secret)
openapi.connect()

# get the current state of the AC sitting behind the IR blaster
openapi.get(f"/v2.0/infrareds/{remote_id}/remotes/{ac_id}/ac/status")

# tell it what to do, e.g. turn the power on
openapi.post(
   f"/v2.0/infrareds/{remote_id}/air-conditioners/{ac_id}/command",
   {"code": "power", "value": "1"},
)

That’s genuinely the whole integration. Two endpoints, the Tuya connector signs the requests for me, and swapping the code and value (power, temp, mode, wind) is enough to drive everything the remote could.

Creating a custom Home Assistant thermostat

Talking to the API was only half of it. To actually use the thing properly, and to expose it to HomeKit, I needed a real Home Assistant integration.

Looking back, I should have just read the docs. Instead I felt lucky, told ChatGPT everything I knew, and asked it to build the whole thing for me. To its credit, it tried. But it mostly left me more confused than when I started, asking more questions than I was getting answers.

What did work was treating it as an assistant instead of a replacement. The code it gave me, plus a bit of my own Python and a lot of the Home Assistant docs, got me to a working prototype. And once I had that prototype, I could go back to ChatGPT with sharper questions, and that time it nailed them without a problem.

That’s the takeaway I keep coming back to: don’t hand ChatGPT the entire problem and hope, like I did at first. Hand it the small, well-defined pieces and let it help you along the way.

Two integrated air conditioners!

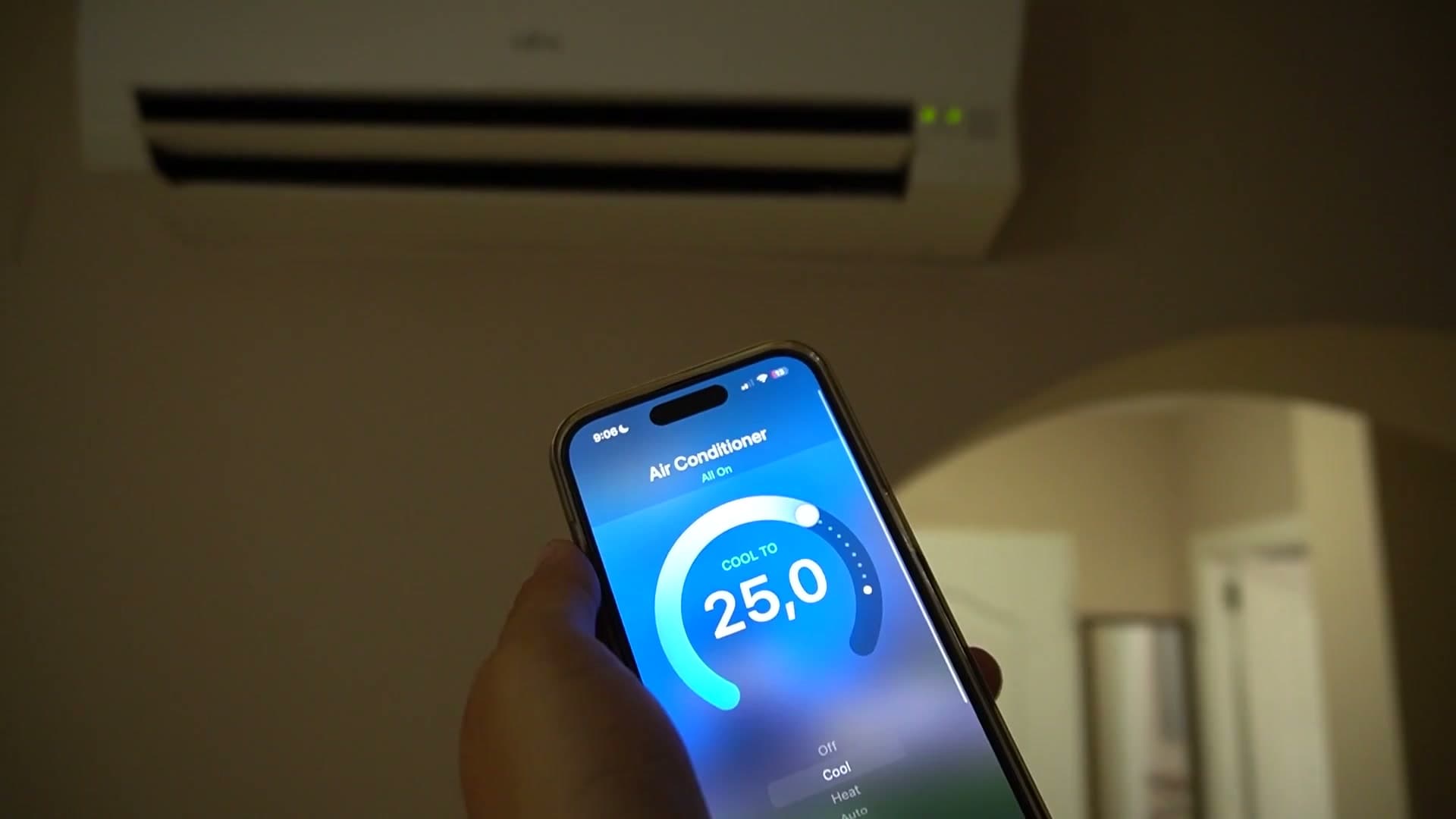

So here’s where I landed. I can see my office air conditioner (on and off) and a fully controllable living room air conditioner, all from the Home Assistant dashboard, from Apple Home, from Siri, and from Google Assistant.

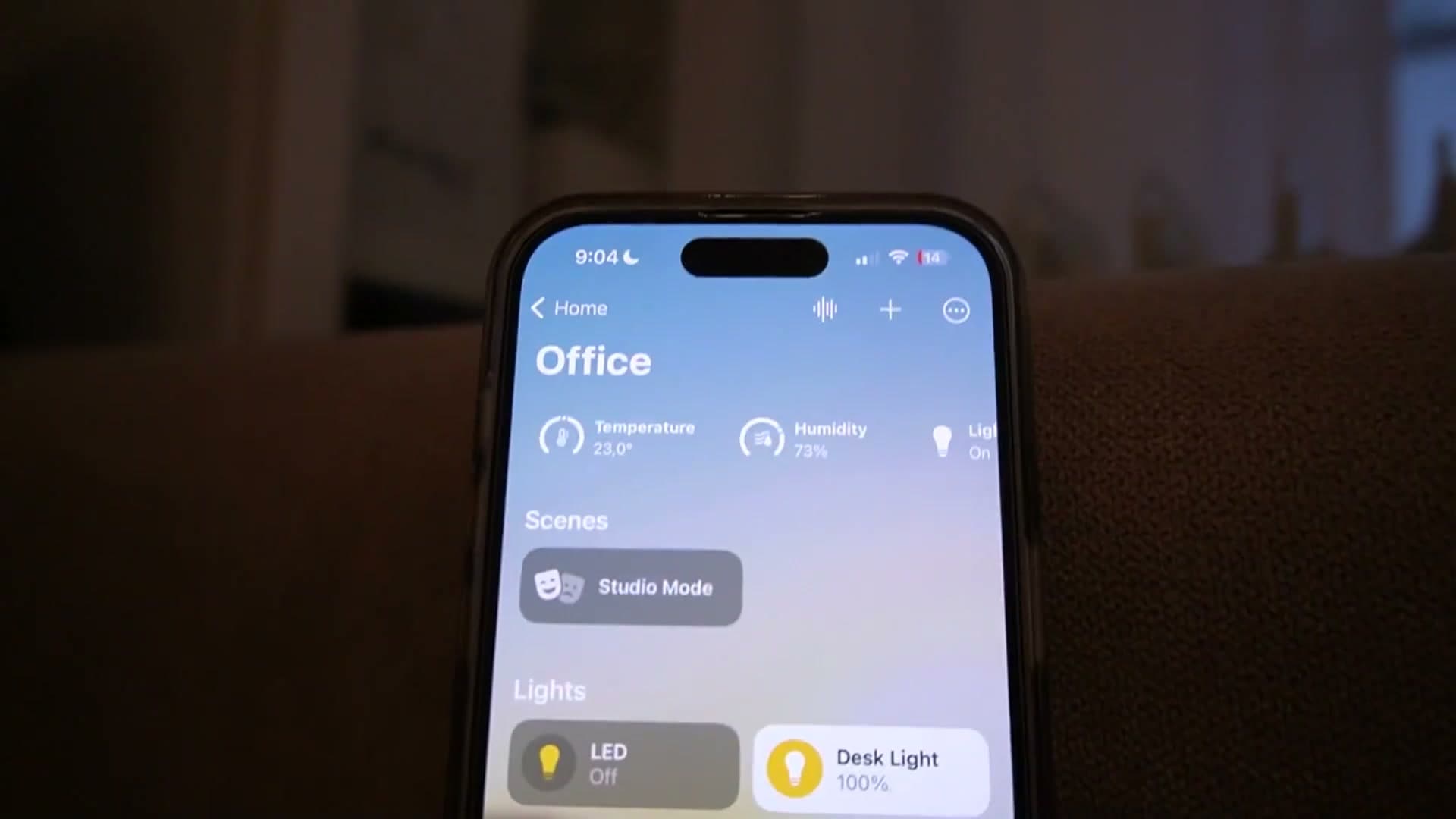

Watching Apple Home slowly fill up with devices, all of them running on a little Raspberry Pi in the corner, is stupidly satisfying. As for the third air conditioner? I’m not sure yet. But I’ve got some thoughts.

Alternatives and solutions

There are better ways to do all of this, and I know it.

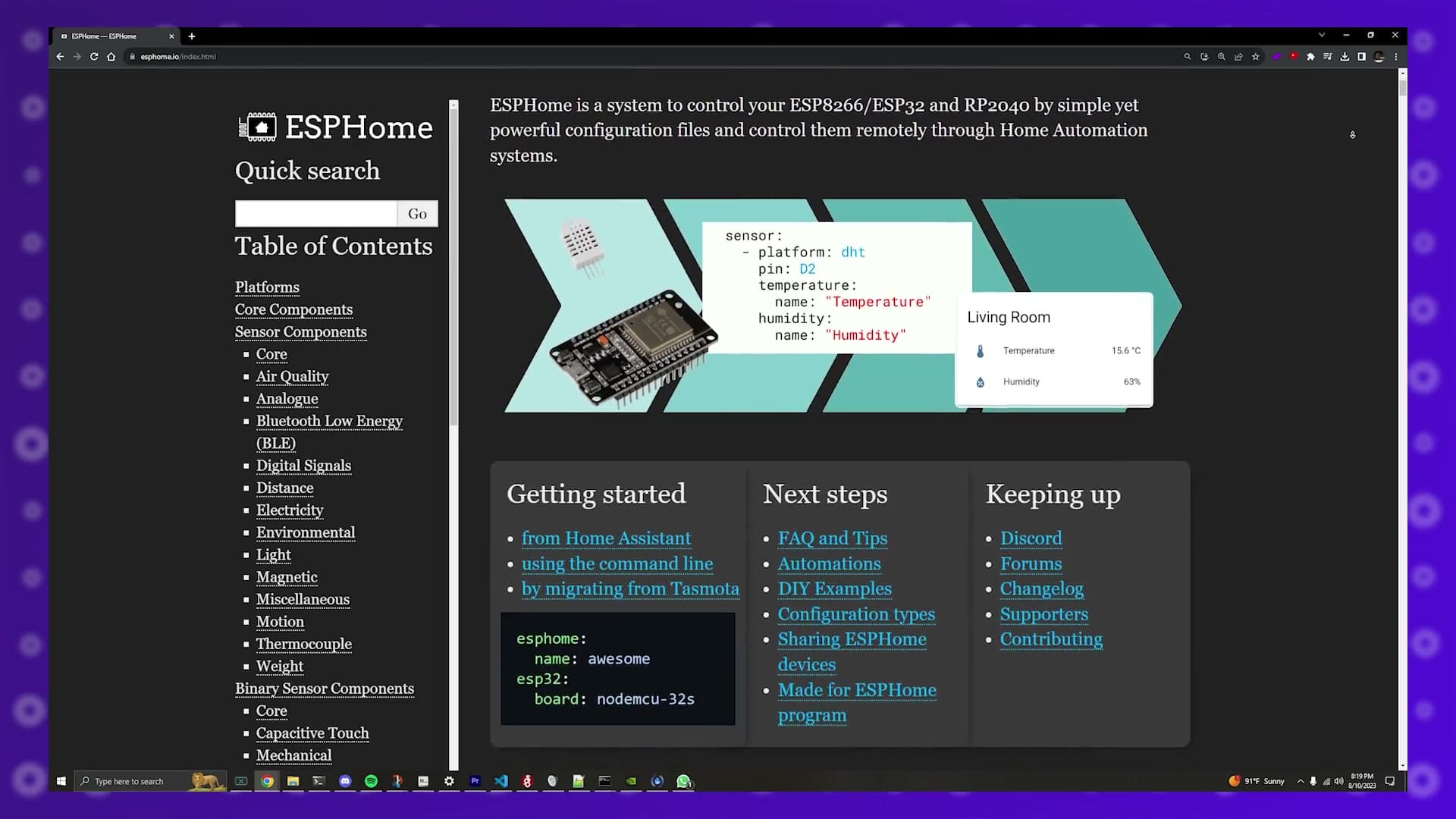

ESP32 boards running ESPHome drop straight into Home Assistant, and plenty of Reddit threads will tell you that’s the “proper” way to go. They’re not wrong. But it still means buying an air conditioner and then having to flash a microcontroller before you can use it the way you wanted, which is exactly the kind of extra step I’m moaning about.

There’s also a lottery element to it. Some people on Reddit said their TCL air conditioners paired straight up with Tuya. Mine refused. I tried the Tuya app, Smart Life, the Life app, anything I could find, and only TCL Home worked. It really does come down to your exact unit.

Zigbee devices, or anything sitting behind a hub, would also work. I just didn’t want more moving parts and more things that can fail for this particular job. (For lights and a bunch of other things, Zigbee is brilliant and I use it happily.)

Which brings me back to the thing I keep saying: keep as much as possible in one place. Matter is the protocol every big company seems to be lining up behind, and what it promises looks genuinely good. My HomePod Mini apparently uses it. Home Assistant tells me so, and that’s honestly about as much as I currently understand. I’ll dig into it properly once it’s more mature.

The other route is an open API or plain LAN access, with someone in the community writing an integration on top, the way LocalTuya tries to for Tuya devices. That one, unfortunately, didn’t work for me either.

When it does work, though, it’s lovely. My TP-Link Tapo lights and cameras have community Home Assistant integrations that talk over the local network with no cloud involved. They’re faster than round-tripping to a server, and they keep working even when the internet goes down.

The “end-user” perspective

I put “end-user” in the title to keep things broad, but really there are two kinds of us.

There’s the regular person, my parents, who isn’t especially techy. And there’s the person like me. My parents do not want yet another app on their phone, with its own account, its own pairing dance, and possibly its own subscription down the line. And someone like me can lose entire days getting one device into Home Assistant.

(I’ll be honest, I really should be spending those days on my A-levels and university applications. But at least now I’ve got something to put in my personal statement. This, apparently.)

The army of smart home apps

Open the App Store, search “smart home,” and you’ll drown. Tuya, TP-Link, Wiz, Philips, Samsung. Big names, small names, half of them Chinese factories, all shipping their own app that does pretty much the same thing. Make an account. Verify your email. Add your devices. Repeat until your phone has fifteen of them, like mine does.

I think the smart home idea is genuinely brilliant. I just think it grew up too fast. There should be one central app, or at least a handful that each do one job well, one for lights, one for air conditioners, instead of a research project and a rant every time you want to plug something in.

My overall opinion

Of everything I’ve done in this smart home so far, the air conditioners have been the single most annoying part. Adding lights to my office was one click and they worked instantly. The ACs were days.

And yet, once the anger wore off (especially the Tuya integration, which nearly broke me), I genuinely had a lot of fun. So if you’ve got the time to tinker and you want your setup exactly your way, go for it. Buy the weird air conditioner, or any cursed smart device really, and bend it until it does what you want.

I’m really happy to be making things again. Thanks for reading.

Cheers!

Update: since I first put this out, someone took my reverse-engineering work and built it into a proper, full Home Assistant integration for TCL air conditioners, which is genuinely the dream outcome I was rambling about at the very start. Exactly the “someone create an extension or an integration for it” thing I kept wishing for. Go give it a look (and a star).
